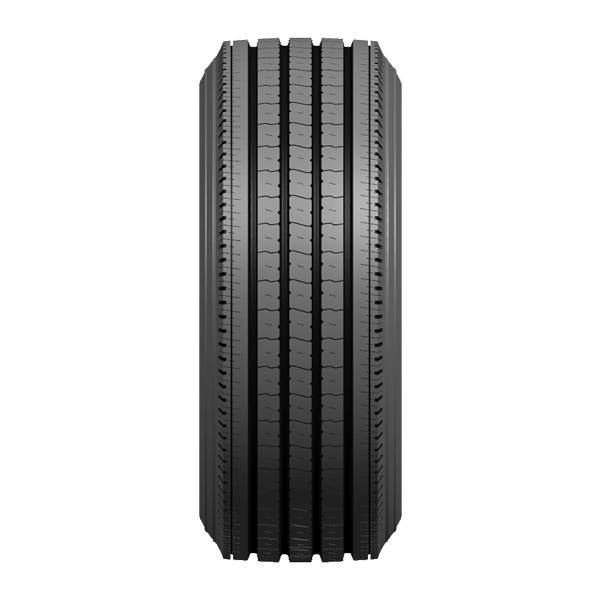

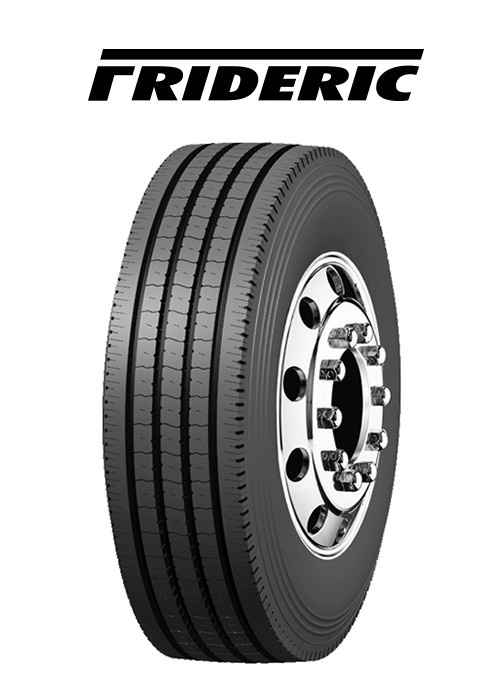

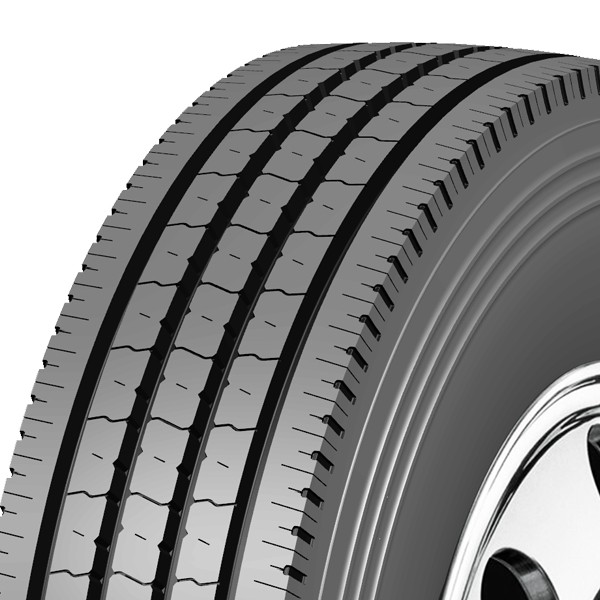

FA606

Product features: low heat generation, anti-slippery, good heat dissipation, wear resistance

Applicable environment: suitable for medium and long distance vehicles on ordinary and highway

Installation position: steer wheel, trailer wheel

Pattern type: medium and long distance

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	15.0
	255/70R22.5	16	140/137	M	7.50	2500	2300	830	830	255	930	13.0
	295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1014	15.0
	295/80R22.5	18	152/149	M	9.00	3550	3250	900	900	298	1044	15.0
	315/80R22.5	20	156/153	M	9.00	4000	3650	850	850	312	1076	14.5
24.5″	11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	15.0
24.5″	285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1050	15.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	15.0
	255/70R22.5	16	140/137	M	7.50	2500	2300	830	830	255	930	13.0
	295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1014	15.0
	295/80R22.5	18	152/149	M	9.00	3550	3250	900	900	298	1044	15.0
	315/80R22.5	20	156/153	M	9.00	4000	3650	850	850	312	1076	14.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	15.0
	285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1050	15.0

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	15.0
	255/70R22.5	16	140/137	M	7.50	2500	2300	830	830	255	930	13.0
	295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1014	15.0
	295/80R22.5	18	152/149	M	9.00	3550	3250	900	900	298	1044	15.0
	315/80R22.5	20	156/153	M	9.00	4000	3650	850	850	312	1076	14.5
24.5″	11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	15.0
24.5″	285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1050	15.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	15.0
	255/70R22.5	16	140/137	M	7.50	2500	2300	830	830	255	930	13.0
	295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1014	15.0
	295/80R22.5	18	152/149	M	9.00	3550	3250	900	900	298	1044	15.0
	315/80R22.5	20	156/153	M	9.00	4000	3650	850	850	312	1076	14.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	15.0
	285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1050	15.0
