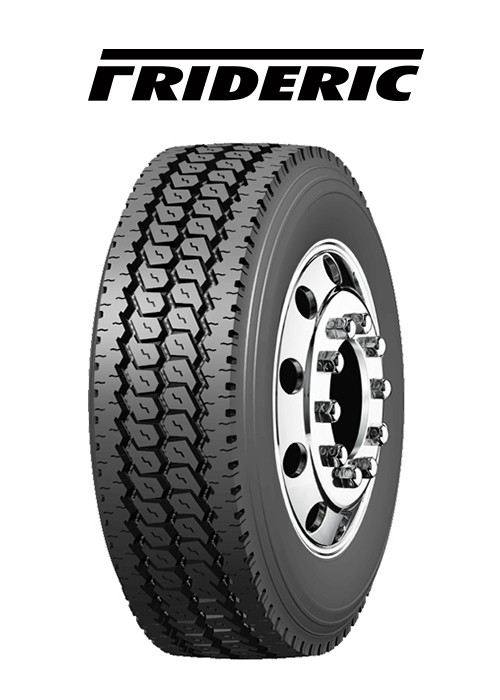

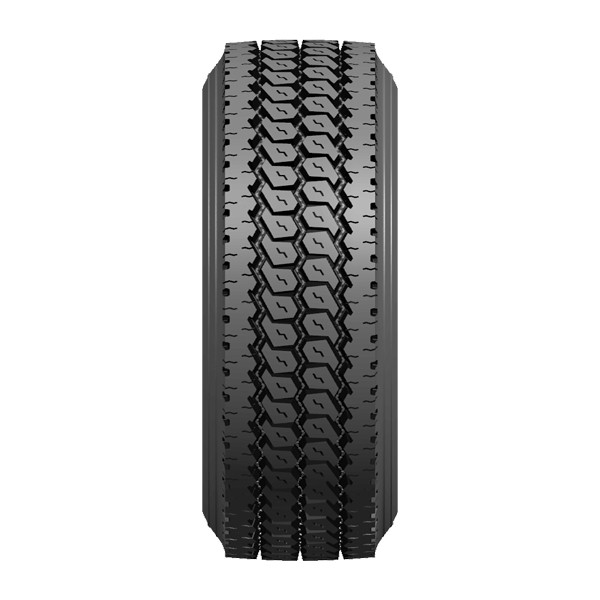

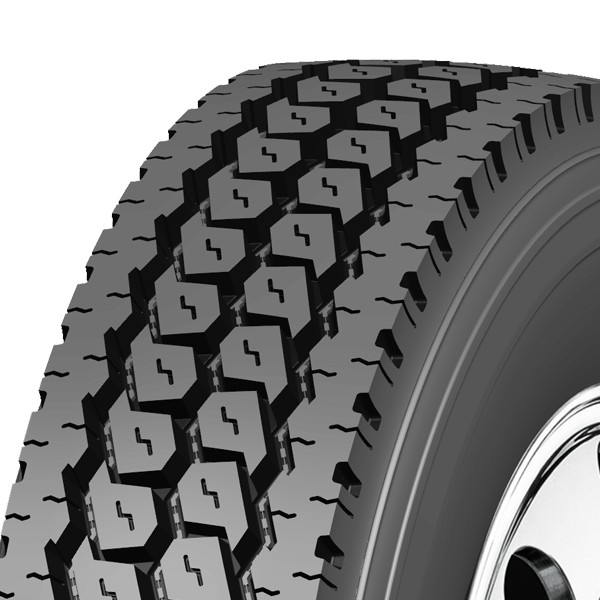

FA618

Product features: strong drive, anti skid, wear resistance

Applicable environment: suitable for medium and short distance vehicles on ordinary and mixed road surface

Installation position: drive wheel,trailer wheel

Pattern type: medium and long distance

size

22.5"
24.5"

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	22.5
22.5″	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	22.5
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	22.5
24.5″	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	22.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	22.5
	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	22.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	22.5
	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	22.5

size

22.5"
24.5"

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	22.5
22.5″	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	22.5
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	22.5
24.5″	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	22.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
22.5″	11R22.5	16PR	146/143	L	8.25	3000	2725	830	830	279	1054	22.5
	295/75R22.5	16PR	146/143	K	9.00	3000	2725	830	830	298	1014	22.5

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
						Single	Dual	Single	Dual
24.5″	11R24.5	16PR	149/146	L	8.25	3250	3000	830	830	279	1104	22.5
	285/75R24.5	16PR	147/144	L	8.25	3075	2800	830	830	283	1050	22.5
