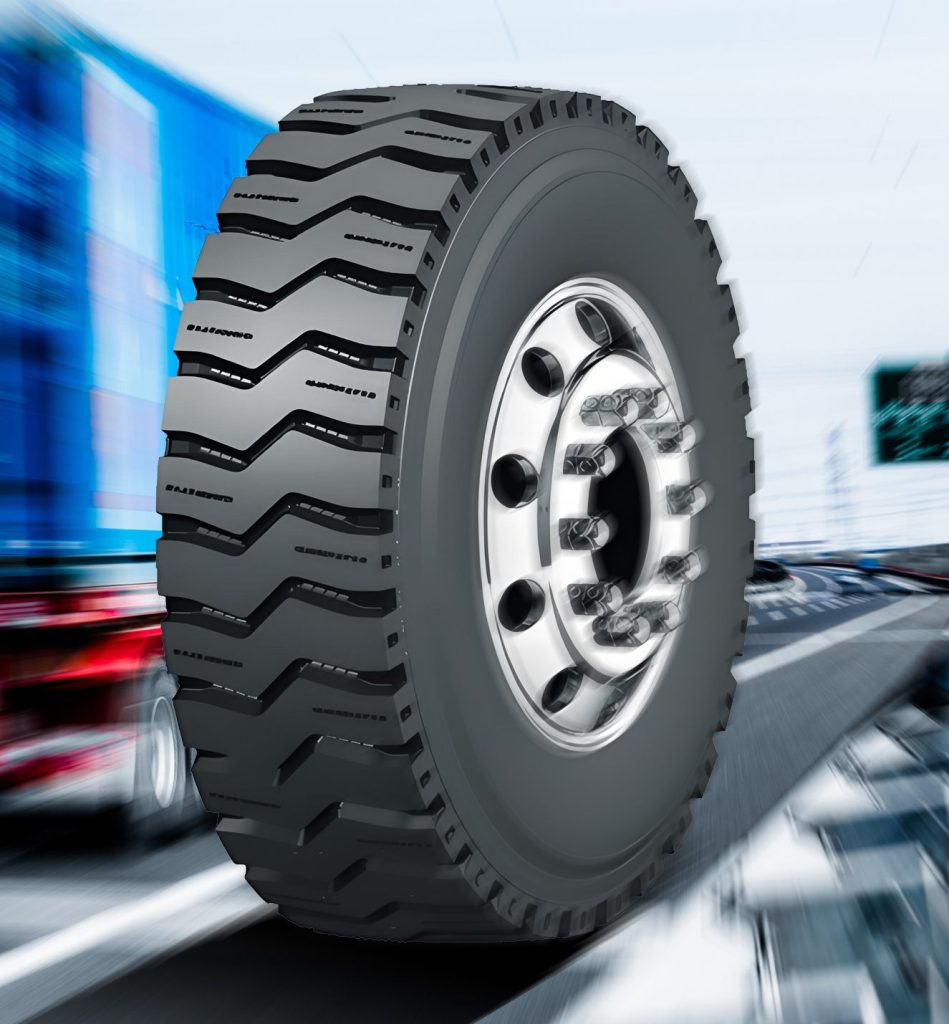

FD927

Product features: strong drive, abrasion resistance, puncture resistance, impact resistance

Applicable environment: Suitable for short-distance vehicles on unpaved road surface (mining area, mountain area, site, etc.)

Installation position: all wheel position

Pattern type: mine type

Synthetic glue formula design, thorn resistance

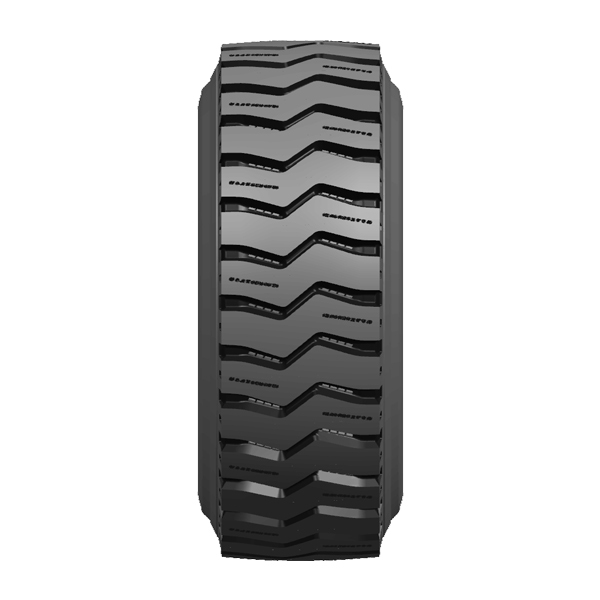

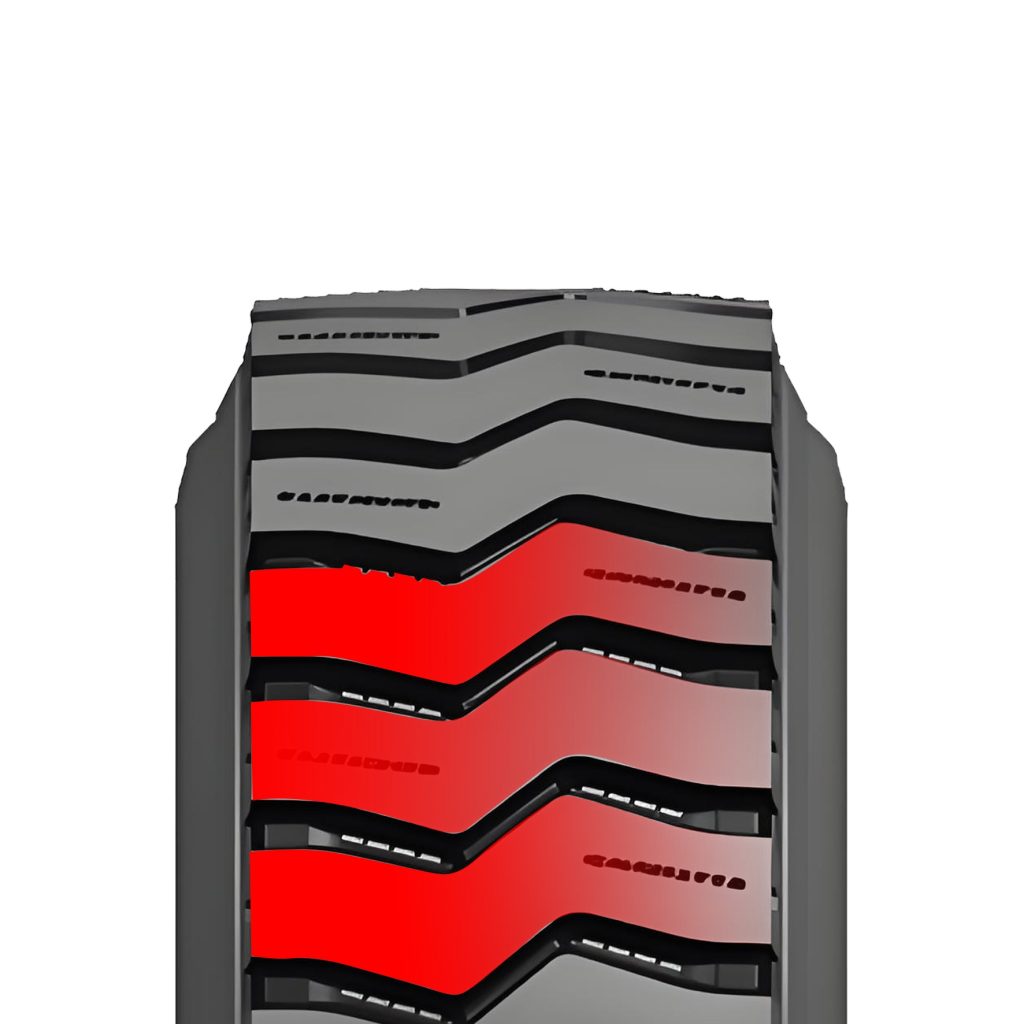

Horizontal overall large pattern block design, puncture resistance, strong driving force

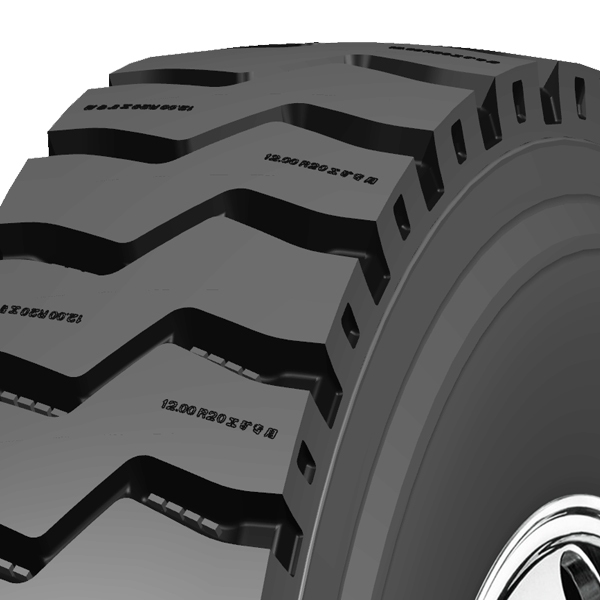

Open tire shoulder design, good mud performance

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
16″	8.25R16LT	16	128/124	M	6.50H	1800	1600	770	770	235	865	21.0
20″	8.25R20	16	139/137	L	6.50	2430	2300	930	930	236	974	17.0
	9.00R20	16	144/142	L	7.00	2800	2650	900	900	259	1030	21.0
	10.00R20	18	149/146	L	7.50	3250	3000	930	930	278	1065	22.0

Rim Diameter

Size

Load
Index

Speed
Rating

Standard
Rim

Max. Load(kg）

Pressure(kPa)

Section Width(mm)

Overall Diameter(mm)

Tread Depth(mm)

Single

Dual

Single

Dual

16″

8.25R16LT

128/124

6.50H

1800

1600

770

235

865

21.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
20″	8.25R20	16	139/137	L	6.50	2430	2300	930	930	236	974	17.0
	9.00R20	16	144/142	L	7.00	2800	2650	900	900	259	1030	21.0
	10.00R20	18	149/146	L	7.50	3250	3000	930	930	278	1065	22.0

size

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
16″	8.25R16LT	16	128/124	M	6.50H	1800	1600	770	770	235	865	21.0
20″	8.25R20	16	139/137	L	6.50	2430	2300	930	930	236	974	17.0
	9.00R20	16	144/142	L	7.00	2800	2650	900	900	259	1030	21.0
	10.00R20	18	149/146	L	7.50	3250	3000	930	930	278	1065	22.0

Rim Diameter

Size

Load
Index

Speed
Rating

Standard
Rim

Max. Load(kg）

Pressure(kPa)

Section Width(mm)

Overall Diameter(mm)

Tread Depth(mm)

Single

Dual

Single

Dual

16″

8.25R16LT

128/124

6.50H

1800

1600

770

235

865

21.0

Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Rim Diameter	Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
20″	8.25R20	16	139/137	L	6.50	2430	2300	930	930	236	974	17.0
	9.00R20	16	144/142	L	7.00	2800	2650	900	900	259	1030	21.0
	10.00R20	18	149/146	L	7.50	3250	3000	930	930	278	1065	22.0
