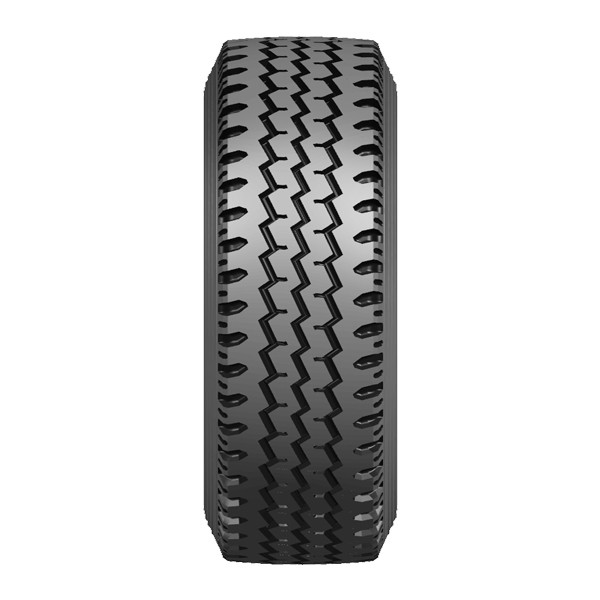

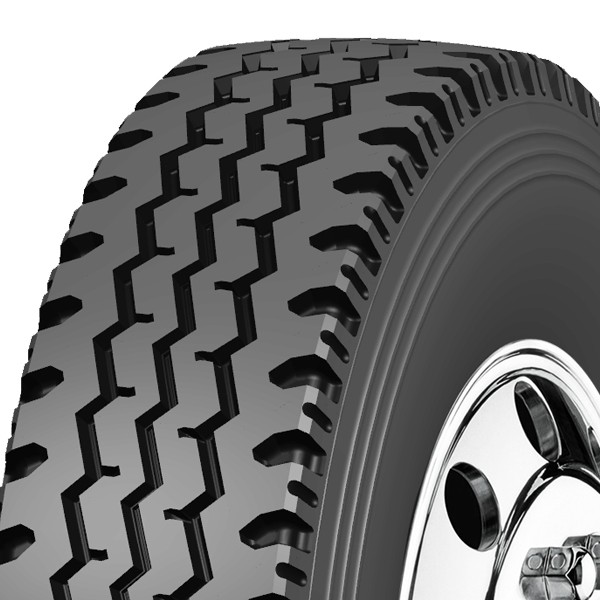

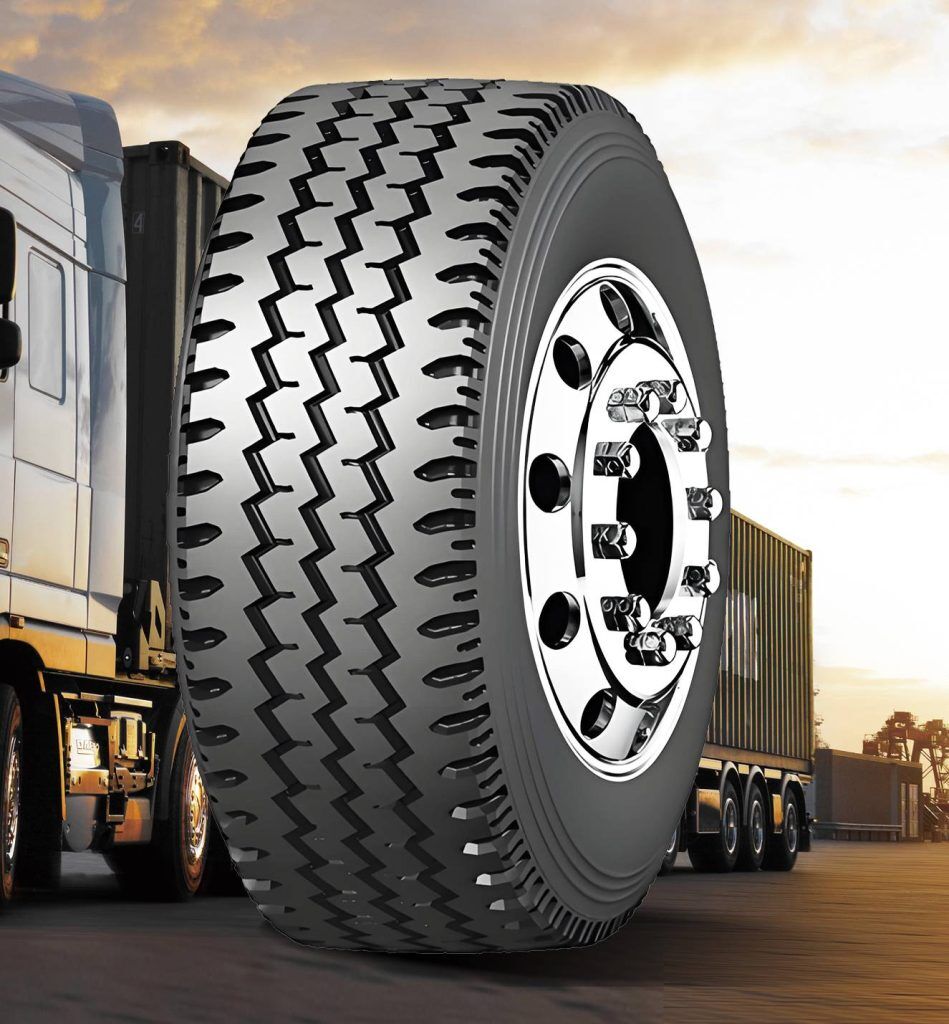

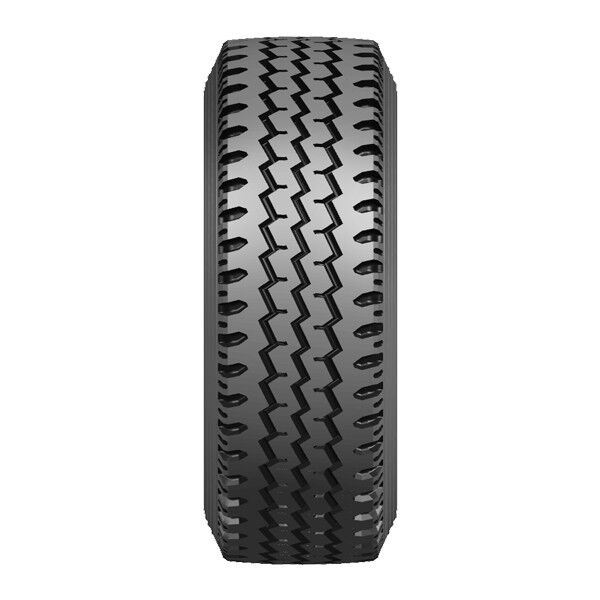

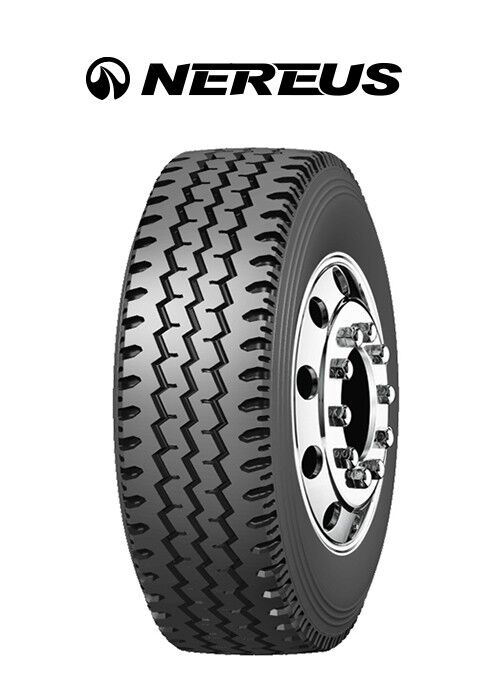

NAM701

Product features: tear resistance, load resistance, anti-sideslip, low noise

Applicable environment: Suitable for medium and long distance vehicles on ordinary and highway

Installation position: all wheel position

Pattern type: short and medium distance area

E-mail
Inquiry
chat now

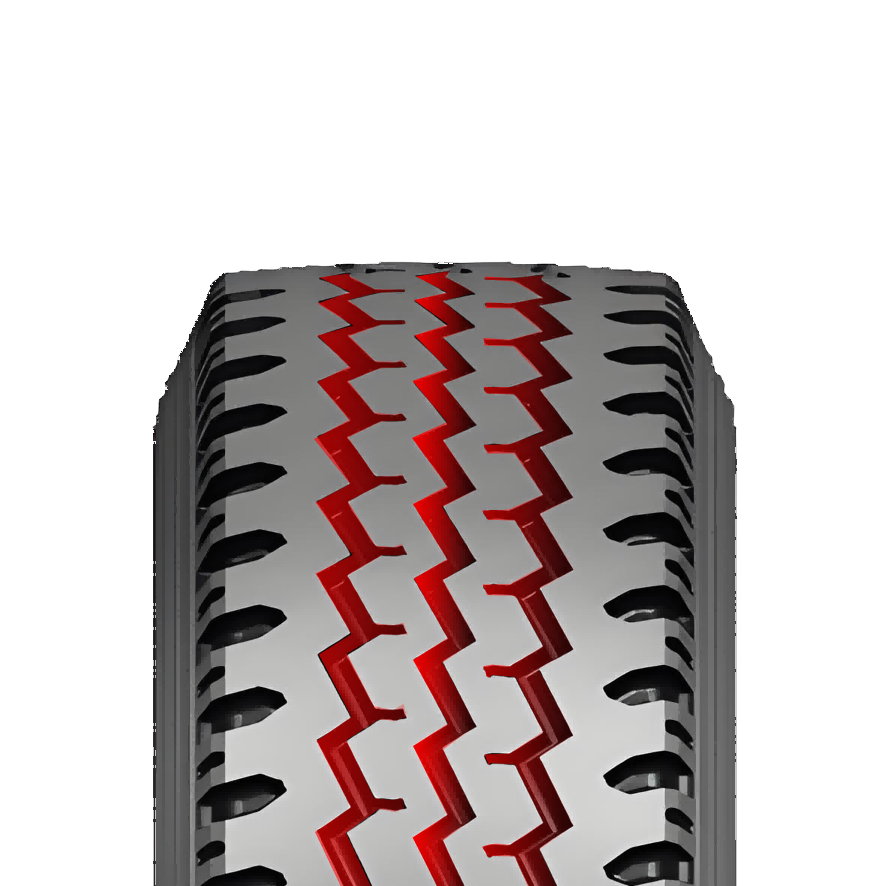

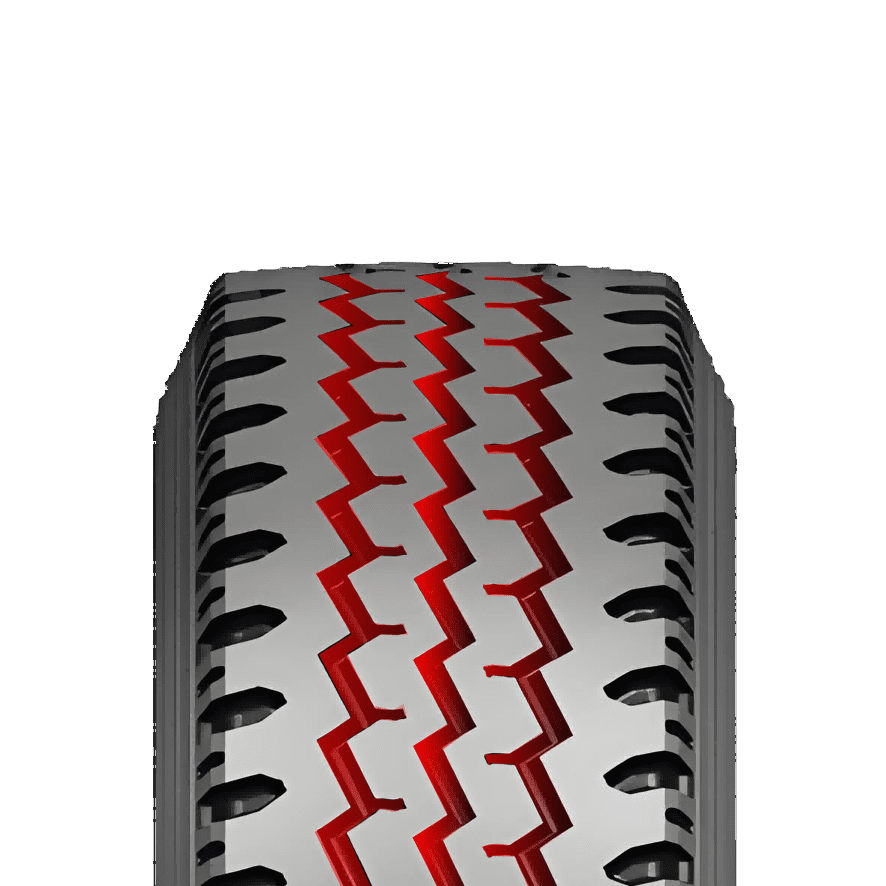

Classic old three line design, old driver favorite

All wheel position all road conditions, comprehensive performance is good

Strengthen the design of the body and increase the carrying capacity by 20%

size

Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
16″ 7.00R16LT 14 118/114 L 5.50F 1320 1180 770 770 205 775 12.0
7.50R16LT 14 122/118 M 6.00G 1500 1320 770 770 215 815 12.0
8.25R16LT 16 128/124 M 6.50H 1800 1600 770 770 235 865 12.0
20″ 8.25R20 16 139/137 L 6.50 2430 2300 930 930 236 974 13.0
9.00R20 16 144/142 L 7.00 2800 2650 900 900 259 1030 15.5
10.00R20 18 149/146 L 7.50 3250 3000 930 930 278 1065 15.5
22.5″ 13R22.5 18 154/151 L 9.75 3750 3350 850 850 320 1124 16.5
11R22.5 16 146/143 M 8.25 3000 2725 830 830 279 1054 15.0
11R22.5 18 149/146 M 8.25 3250 3000 900 900 279 1054 15.0
255/70R22.5 16 140/137 M 7.50 2500 2300 830 830 255 930 13.0
315/80R22.5 20 156/153 M 9.00 4000 3650 850 850 312 1076 14.5
24″ 12.00R24 20 160/157 L 8.50 4500 4125 900 900 315 1226 14.0
24.5″ 11R24.5 16 149/146 M 8.25 3250 3000 830 830 279 1104 15.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
16″ 7.00R16LT 14 118/114 L 5.50F 1320 1180 770 770 205 775 12.0
7.50R16LT 14 122/118 M 6.00G 1500 1320 770 770 215 815 12.0
8.25R16LT 16 128/124 M 6.50H 1800 1600 770 770 235 865 12.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
20″ 8.25R20 16 139/137 L 6.50 2430 2300 930 930 236 974 13.0
9.00R20 16 144/142 L 7.00 2800 2650 900 900 259 1030 15.5
10.00R20 18 149/146 L 7.50 3250 3000 930 930 278 1065 15.5
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
22.5″ 13R22.5 18 154/151 L 9.75 3750 3350 850 850 320 1124 16.5
11R22.5 16 146/143 M 8.25 3000 2725 830 830 279 1054 15.0
11R22.5 18 149/146 M 8.25 3250 3000 900 900 279 1054 15.0
255/70R22.5 16 140/137 M 7.50 2500 2300 830 830 255 930 13.0
315/80R22.5 20 156/153 M 9.00 4000 3650 850 850 312 1076 14.5
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
24″ 12.00R24 20 160/157 L 8.50 4500 4125 900 900 315 1226 14.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
24.5″ 11R24.5 16 149/146 M 8.25 3250 3000 830 830 279 1104 15.0
DOWNLOAD

size

Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
16″ 7.00R16LT 14 118/114 L 5.50F 1320 1180 770 770 205 775 12.0
7.50R16LT 14 122/118 M 6.00G 1500 1320 770 770 215 815 12.0
8.25R16LT 16 128/124 M 6.50H 1800 1600 770 770 235 865 12.0
20″ 8.25R20 16 139/137 L 6.50 2430 2300 930 930 236 974 13.0
9.00R20 16 144/142 L 7.00 2800 2650 900 900 259 1030 15.5
10.00R20 18 149/146 L 7.50 3250 3000 930 930 278 1065 15.5
22.5″ 13R22.5 18 154/151 L 9.75 3750 3350 850 850 320 1124 16.5
11R22.5 16 146/143 M 8.25 3000 2725 830 830 279 1054 15.0
11R22.5 18 149/146 M 8.25 3250 3000 900 900 279 1054 15.0
255/70R22.5 16 140/137 M 7.50 2500 2300 830 830 255 930 13.0
315/80R22.5 20 156/153 M 9.00 4000 3650 850 850 312 1076 14.5
24″ 12.00R24 20 160/157 L 8.50 4500 4125 900 900 315 1226 14.0
24.5″ 11R24.5 16 149/146 M 8.25 3250 3000 830 830 279 1104 15.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
16″ 7.00R16LT 14 118/114 L 5.50F 1320 1180 770 770 205 775 12.0
7.50R16LT 14 122/118 M 6.00G 1500 1320 770 770 215 815 12.0
8.25R16LT 16 128/124 M 6.50H 1800 1600 770 770 235 865 12.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
20″ 8.25R20 16 139/137 L 6.50 2430 2300 930 930 236 974 13.0
9.00R20 16 144/142 L 7.00 2800 2650 900 900 259 1030 15.5
10.00R20 18 149/146 L 7.50 3250 3000 930 930 278 1065 15.5
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
22.5″ 13R22.5 18 154/151 L 9.75 3750 3350 850 850 320 1124 16.5
11R22.5 16 146/143 M 8.25 3000 2725 830 830 279 1054 15.0
11R22.5 18 149/146 M 8.25 3250 3000 900 900 279 1054 15.0
255/70R22.5 16 140/137 M 7.50 2500 2300 830 830 255 930 13.0
315/80R22.5 20 156/153 M 9.00 4000 3650 850 850 312 1076 14.5
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
24″ 12.00R24 20 160/157 L 8.50 4500 4125 900 900 315 1226 14.0
Rim Diameter Size PR Load
Index		 Speed
Rating		 Standard
Rim		 Max. Load(kg） Pressure(kPa) Section Width(mm) Overall Diameter(mm) Tread Depth(mm)
Single Dual Single Dual
24.5″ 11R24.5 16 149/146 M 8.25 3250 3000 830 830 279 1104 15.0
DOWNLOAD
