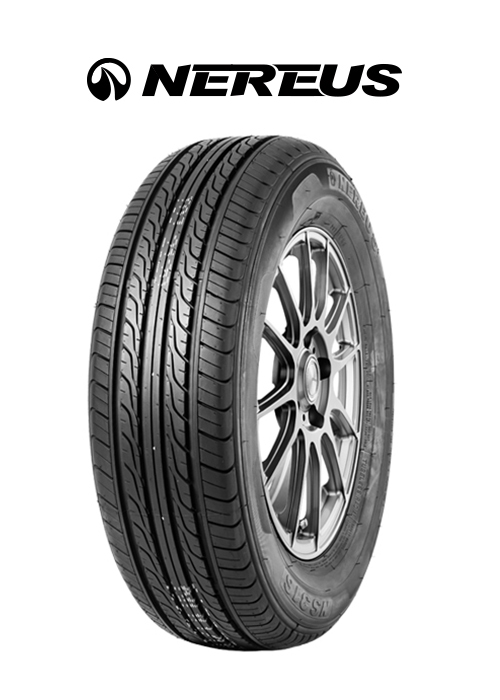

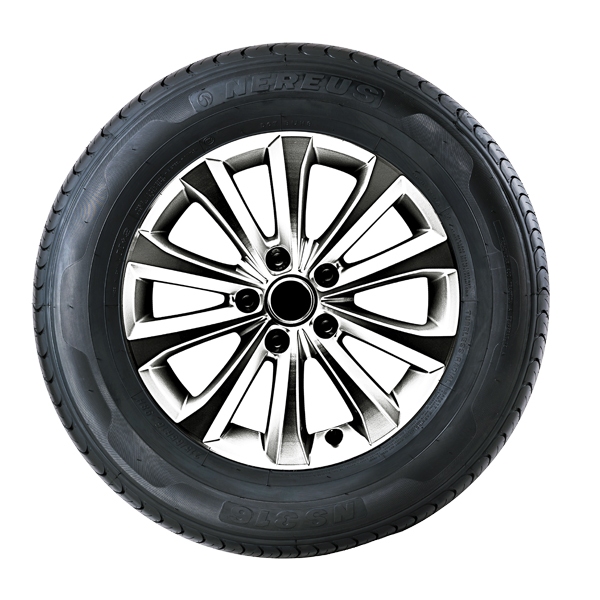

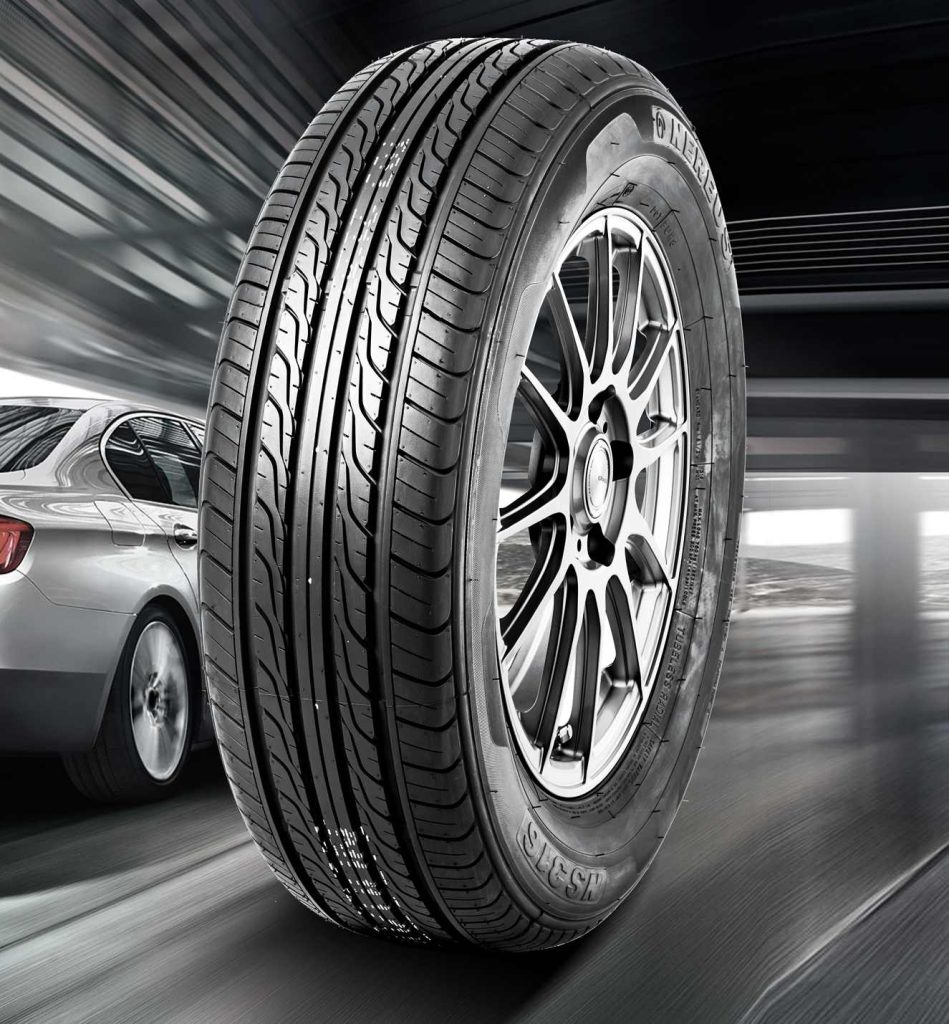

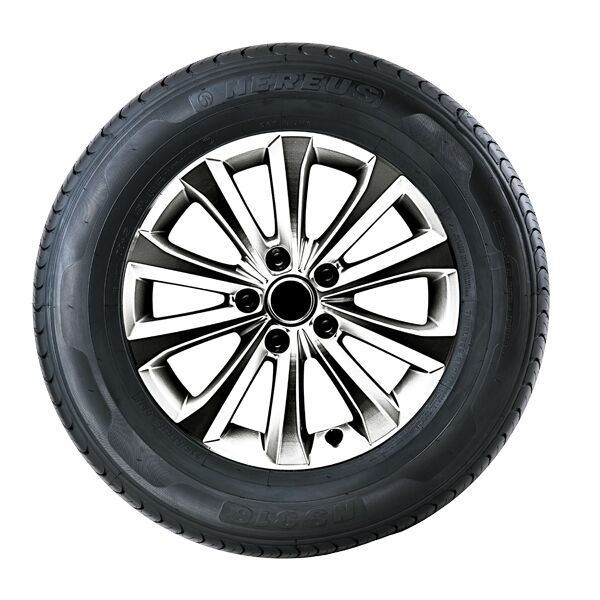

NS316

Summer tyre for small and medium-sized vehicles.

The NS316 is a summer tire that has been designed for compact and mid-sized cars. This range offers a combination of modern looks, good handling and a quiet and comfortable driving.

SPEED RATING : T/H/V Speed Rated

UTQG : 400/A/A

Passenger car

Summer

Comfort

M+S

E-mail
Inquiry
chat now

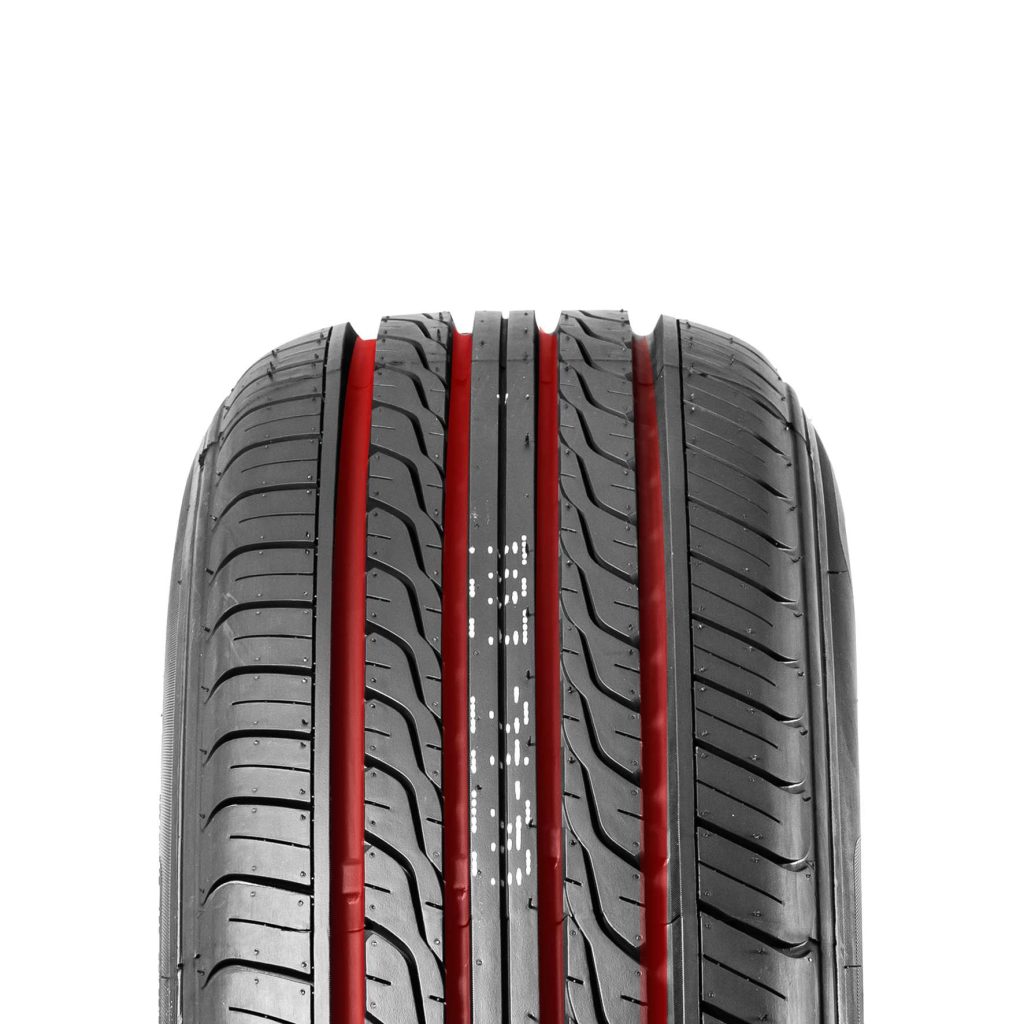

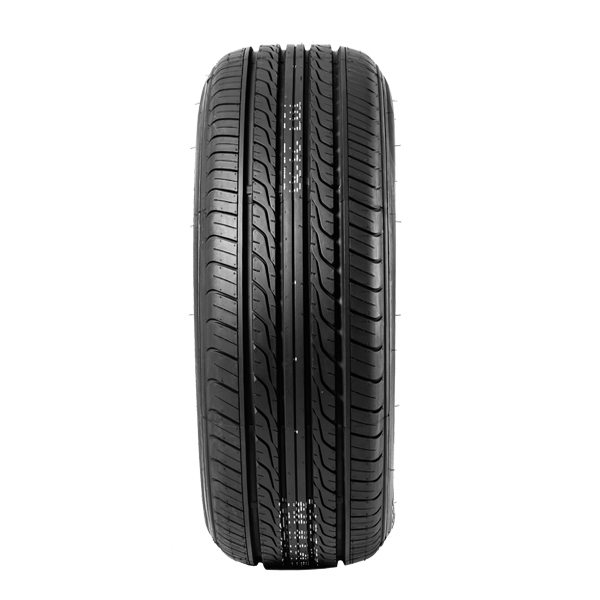

4 wide longituinal Grooves design greatly improves water drainage and driving stability on slippery roads.

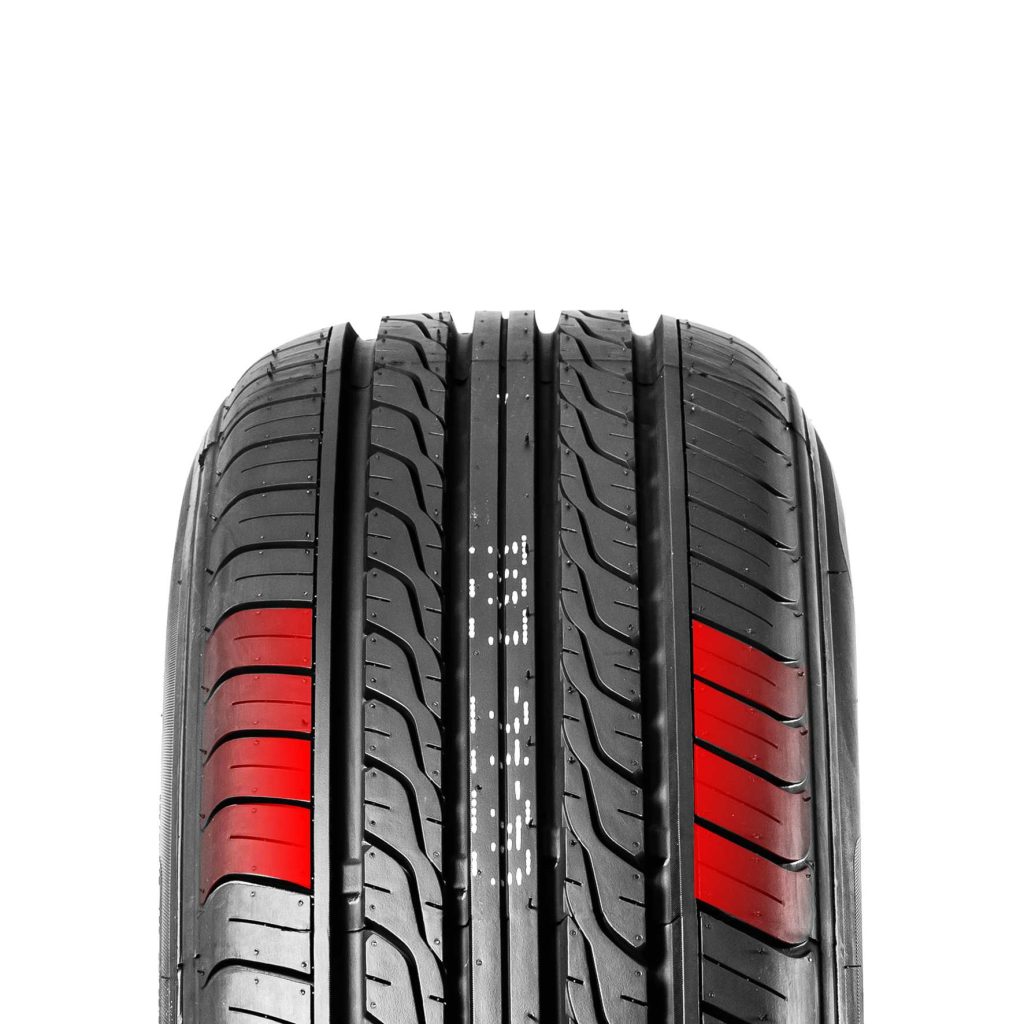

Widened shoulder tread design increases contacting area and provides better driving stability and reliability Lateral shaped groove ensures better wet grip.

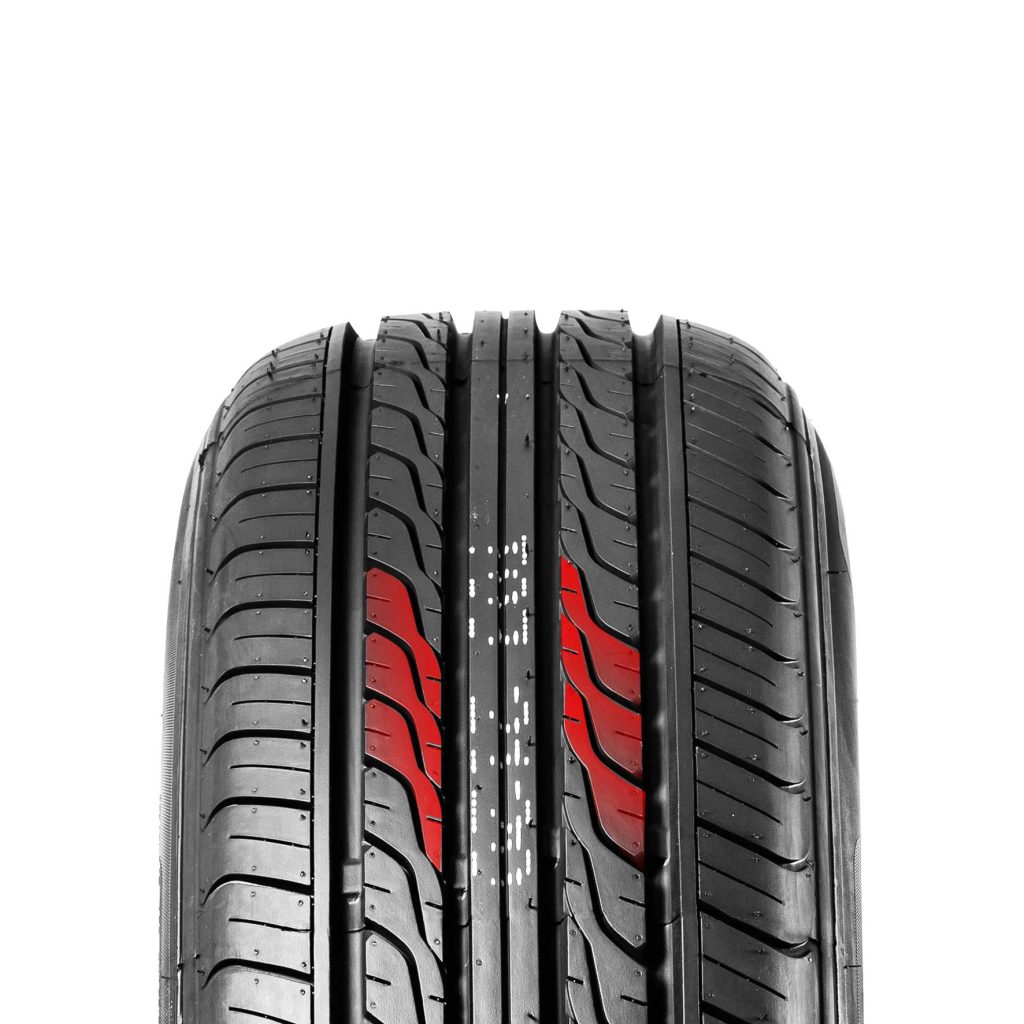

Symmetrical pattern design and small notched design on the tread increases the friction between the tire and the ground, driving comfort is significantly improved.

Optimized variable pitch sequence design disperses road noise and reduces vibration, driving comfort is highly improved.

size

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
13″ 155/65R13 73T 4.5J 532 400/A/A 300 365
155/70R13 75T 4.5J 548 400/A/A 300 387
155/80R13 79T 4.5J 578 400/A/A 300 437
165/65R13 77T 4.5J 544 400/A/A 300 412
165/70R13 79T 5J 562 400/A/A 300 437
165/80R13 83T 4.5J 594 400/A/A 300 487
175/60R13 77T 5J 540 400/A/A 300 412
175/70R13 82T 5J 576 400/A/A 300 475
185/70R13 86H 5.5J 590 400/A/A 300 530
14″ 155/65R14 75T 4.5J 558 400/A/A 300 387
165/60R14 75H 5J 554 400/A/A 300 387
165/70R14 81T 5J 588 400/A/A 300 462
175/65R14 82H 5J 584 400/A/A 300 475
175/70R14 84T 5J 602 400/A/A 300 500
185/60R14 82H 5.5J 578 400/A/A 300 475
185/65R14 86H 5.5J 596 400/A/A 300 530
185/70R14 88H 5.5J 616 400/A/A 300 560
195/60R14 86H 6J 590 400/A/A 300 530
195/65R14 89H 6J 610 400/A/A 300 580
195/70R14 91H 6J 630 400/A/A 300 615
205/60R14 88H 6J 602 400/A/A 300 560
205/70R14 95H 6J 644 400/A/A 300 690
215/70R14 96H 6.5J 658 400/A/A 300 710
15″ 175/65R15 84H 5J 609 400/A/A RP 300 500
185/55R15 82V 6J 585 400/A/A RP 300 475
185/60R15 88H XL 5.5J 603 400/A/A 340 560
185/65R15 88H 5.5J 621 400/A/A 300 560
195/50R15 82V 6J 577 400/A/A RP 300 475
195/55R15 85V 6J 595 400/A/A RP 300 515
195/60R15 88H 6J 615 400/A/A 300 560
195/65R15 91H 6J 635 400/A/A 300 615
205/60R15 91H 6J 627 400/A/A 300 615
205/65R15 94H 6J 647 400/A/A 300 670
205/70R15 96H 6J 669 400/A/A 300 710
215/60R15 94H 6.5J 639 400/A/A 300 670
215/65R15 96H 6.5J 661 400/A/A 300 710
215/70R15 98H 6.5J 683 400/A/A 300 750
225/60R15 96V 6.5J 651 400/A/A 300 710
16″ 195/50R16 84V 6J 602 400/A/A 300 500
195/55R16 91V XL 6J 620 400/A/A 340 615
195/60R16 89H 6J 640 400/A/A 300 580
205/55R16 94V XL 6.5J 632 400/A/A RP 340 670
205/60R16 92H 6J 652 400/A/A 300 630
205/65R16 95H 6J 672 400/A/A 300 690
215/55R16 97W XL 7J 642 400/A/A 340 730
215/60R16 95H 6.5J 664 400/A/A 300 690
215/65R16 98H 6.5J 686 400/A/A 300 750
225/55R16 95V 7J 654 400/A/A 300 690
225/60R16 98H 6.5J 676 400/A/A 300 750
235/60R16 100H 7J 688 400/A/A 300 800
17″ 215/55R17 94V 7J 668 400/A/A 300 670
225/55R17 101H XL 7J 680 400/A/A 340 825
RWW&
RWL		 165/65R13 77T 4.5J 544 400/A/A RWW 300 412
175/70R13 82T 5J 576 400/A/A RWW 300 475
185/70R14 88H 5.5J 616 400/A/A RWW 300 560
185/70R14 88H 5.5J 616 400/A/A RWL 300 560
195/70R14 91H 6J 630 400/A/A RWW 300 615
195/70R14 91H 6J 630 400/A/A RWL 300 615
195/65R15 91H 6J 635 400/A/A RWW 300 615
195/65R15 91H 6J 635 400/A/A RWL 300 615



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
13″ 155/65R13 73T 4.5J 532 400/A/A 300 365
155/70R13 75T 4.5J 548 400/A/A 300 387
155/80R13 79T 4.5J 578 400/A/A 300 437
165/65R13 77T 4.5J 544 400/A/A 300 412
165/70R13 79T 5J 562 400/A/A 300 437
165/80R13 83T 4.5J 594 400/A/A 300 487
175/60R13 77T 5J 540 400/A/A 300 412
175/70R13 82T 5J 576 400/A/A 300 475
185/70R13 86H 5.5J 590 400/A/A 300 530



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
14” 155/65R14 75T 4.5J 558 400/A/A 300 387
165/60R14 75H 5J 554 400/A/A 300 387
165/70R14 81T 5J 588 400/A/A 300 462
175/65R14 82H 5J 584 400/A/A 300 475
175/70R14 84T 5J 602 400/A/A 300 500
185/60R14 82H 5.5J 578 400/A/A 300 475
185/65R14 86H 5.5J 596 400/A/A 300 530
185/70R14 88H 5.5J 616 400/A/A 300 560
195/60R14 86H 6J 590 400/A/A 300 530
195/65R14 89H 6J 610 400/A/A 300 580
195/70R14 91H 6J 630 400/A/A 300 615
205/60R14 88H 6J 602 400/A/A 300 560
205/70R14 95H 6J 644 400/A/A 300 690
215/70R14 96H 6.5J 658 400/A/A 300 710



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector



Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
15“ 175/65R15 84H 5J 609 400/A/A RP 300 500
185/55R15 82V 6J 585 400/A/A RP 300 475
185/60R15 88H XL 5.5J 603 400/A/A 340 560
185/65R15 88H 5.5J 621 400/A/A 300 560
195/50R15 82V 6J 577 400/A/A RP 300 475
195/55R15 85V 6J 595 400/A/A RP 300 515
195/60R15 88H 6J 615 400/A/A 300 560
195/65R15 91H 6J 635 400/A/A 300 615
205/60R15 91H 6J 627 400/A/A 300 615
205/65R15 94H 6J 647 400/A/A 300 670
205/70R15 96H 6J 669 400/A/A 300 710
215/60R15 94H 6.5J 639 400/A/A 300 670
215/65R15 96H 6.5J 661 400/A/A 300 710
215/70R15 98H 6.5J 683 400/A/A 300 750
225/60R15 96V 6.5J 651 400/A/A 300 710



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
16” 195/50R16 84V 6J 602 400/A/A 300 500
195/55R16 91V XL 6J 620 400/A/A 340 615
195/60R16 89H 6J 640 400/A/A 300 580
205/55R16 94V XL 6.5J 632 400/A/A RP 340 670
205/60R16 92H 6J 652 400/A/A 300 630
205/65R16 95H 6J 672 400/A/A 300 690
215/55R16 97W XL 7J 642 400/A/A 340 730
215/60R16 95H 6.5J 664 400/A/A 300 690
215/65R16 98H 6.5J 686 400/A/A 300 750
225/55R16 95V 7J 654 400/A/A 300 690
225/60R16 98H 6.5J 676 400/A/A 300 750
235/60R16 100H 7J 688 400/A/A 300 800



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
17″ 215/55R17 94V 7J 668 400/A/A 300 670
225/55R17 101H XL 7J 680 400/A/A 340 825



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
RWW&
RWL		 165/65R13 77T 4.5J 544 400/A/A RWW 300 412
175/70R13 82T 5J 576 400/A/A RWW 300 475
185/70R14 88H 5.5J 616 400/A/A RWW 300 560
185/70R14 88H 5.5J 616 400/A/A RWL 300 560
195/70R14 91H 6J 630 400/A/A RWW 300 615
195/70R14 91H 6J 630 400/A/A RWL 300 615
195/65R15 91H 6J 635 400/A/A RWW 300 615
195/65R15 91H 6J 635 400/A/A RWL 300 615



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector



DOWNLOAD

size

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
13″ 155/65R13 73T 4.5J 532 400/A/A 300 365
155/70R13 75T 4.5J 548 400/A/A 300 387
155/80R13 79T 4.5J 578 400/A/A 300 437
165/65R13 77T 4.5J 544 400/A/A 300 412
165/70R13 79T 5J 562 400/A/A 300 437
165/80R13 83T 4.5J 594 400/A/A 300 487
175/60R13 77T 5J 540 400/A/A 300 412
175/70R13 82T 5J 576 400/A/A 300 475
185/70R13 86H 5.5J 590 400/A/A 300 530
14″ 155/65R14 75T 4.5J 558 400/A/A 300 387
165/60R14 75H 5J 554 400/A/A 300 387
165/70R14 81T 5J 588 400/A/A 300 462
175/65R14 82H 5J 584 400/A/A 300 475
175/70R14 84T 5J 602 400/A/A 300 500
185/60R14 82H 5.5J 578 400/A/A 300 475
185/65R14 86H 5.5J 596 400/A/A 300 530
185/70R14 88H 5.5J 616 400/A/A 300 560
195/60R14 86H 6J 590 400/A/A 300 530
195/65R14 89H 6J 610 400/A/A 300 580
195/70R14 91H 6J 630 400/A/A 300 615
205/60R14 88H 6J 602 400/A/A 300 560
205/70R14 95H 6J 644 400/A/A 300 690
215/70R14 96H 6.5J 658 400/A/A 300 710
15″ 175/65R15 84H 5J 609 400/A/A RP 300 500
185/55R15 82V 6J 585 400/A/A RP 300 475
185/60R15 88H XL 5.5J 603 400/A/A 340 560
185/65R15 88H 5.5J 621 400/A/A 300 560
195/50R15 82V 6J 577 400/A/A RP 300 475
195/55R15 85V 6J 595 400/A/A RP 300 515
195/60R15 88H 6J 615 400/A/A 300 560
195/65R15 91H 6J 635 400/A/A 300 615
205/60R15 91H 6J 627 400/A/A 300 615
205/65R15 94H 6J 647 400/A/A 300 670
205/70R15 96H 6J 669 400/A/A 300 710
215/60R15 94H 6.5J 639 400/A/A 300 670
215/65R15 96H 6.5J 661 400/A/A 300 710
215/70R15 98H 6.5J 683 400/A/A 300 750
225/60R15 96V 6.5J 651 400/A/A 300 710
16″ 195/50R16 84V 6J 602 400/A/A 300 500
195/55R16 91V XL 6J 620 400/A/A 340 615
195/60R16 89H 6J 640 400/A/A 300 580
205/55R16 94V XL 6.5J 632 400/A/A RP 340 670
205/60R16 92H 6J 652 400/A/A 300 630
205/65R16 95H 6J 672 400/A/A 300 690
215/55R16 97W XL 7J 642 400/A/A 340 730
215/60R16 95H 6.5J 664 400/A/A 300 690
215/65R16 98H 6.5J 686 400/A/A 300 750
225/55R16 95V 7J 654 400/A/A 300 690
225/60R16 98H 6.5J 676 400/A/A 300 750
235/60R16 100H 7J 688 400/A/A 300 800
17″ 215/55R17 94V 7J 668 400/A/A 300 670
225/55R17 101H XL 7J 680 400/A/A 340 825
RWW&
RWL		 165/65R13 77T 4.5J 544 400/A/A RWW 300 412
175/70R13 82T 5J 576 400/A/A RWW 300 475
185/70R14 88H 5.5J 616 400/A/A RWW 300 560
185/70R14 88H 5.5J 616 400/A/A RWL 300 560
195/70R14 91H 6J 630 400/A/A RWW 300 615
195/70R14 91H 6J 630 400/A/A RWL 300 615
195/65R15 91H 6J 635 400/A/A RWW 300 615
195/65R15 91H 6J 635 400/A/A RWL 300 615



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
13″ 155/65R13 73T 4.5J 532 400/A/A 300 365
155/70R13 75T 4.5J 548 400/A/A 300 387
155/80R13 79T 4.5J 578 400/A/A 300 437
165/65R13 77T 4.5J 544 400/A/A 300 412
165/70R13 79T 5J 562 400/A/A 300 437
165/80R13 83T 4.5J 594 400/A/A 300 487
175/60R13 77T 5J 540 400/A/A 300 412
175/70R13 82T 5J 576 400/A/A 300 475
185/70R13 86H 5.5J 590 400/A/A 300 530



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
14” 155/65R14 75T 4.5J 558 400/A/A 300 387
165/60R14 75H 5J 554 400/A/A 300 387
165/70R14 81T 5J 588 400/A/A 300 462
175/65R14 82H 5J 584 400/A/A 300 475
175/70R14 84T 5J 602 400/A/A 300 500
185/60R14 82H 5.5J 578 400/A/A 300 475
185/65R14 86H 5.5J 596 400/A/A 300 530
185/70R14 88H 5.5J 616 400/A/A 300 560
195/60R14 86H 6J 590 400/A/A 300 530
195/65R14 89H 6J 610 400/A/A 300 580
195/70R14 91H 6J 630 400/A/A 300 615
205/60R14 88H 6J 602 400/A/A 300 560
205/70R14 95H 6J 644 400/A/A 300 690
215/70R14 96H 6.5J 658 400/A/A 300 710



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector



Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
15“ 175/65R15 84H 5J 609 400/A/A RP 300 500
185/55R15 82V 6J 585 400/A/A RP 300 475
185/60R15 88H XL 5.5J 603 400/A/A 340 560
185/65R15 88H 5.5J 621 400/A/A 300 560
195/50R15 82V 6J 577 400/A/A RP 300 475
195/55R15 85V 6J 595 400/A/A RP 300 515
195/60R15 88H 6J 615 400/A/A 300 560
195/65R15 91H 6J 635 400/A/A 300 615
205/60R15 91H 6J 627 400/A/A 300 615
205/65R15 94H 6J 647 400/A/A 300 670
205/70R15 96H 6J 669 400/A/A 300 710
215/60R15 94H 6.5J 639 400/A/A 300 670
215/65R15 96H 6.5J 661 400/A/A 300 710
215/70R15 98H 6.5J 683 400/A/A 300 750
225/60R15 96V 6.5J 651 400/A/A 300 710



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
16” 195/50R16 84V 6J 602 400/A/A 300 500
195/55R16 91V XL 6J 620 400/A/A 340 615
195/60R16 89H 6J 640 400/A/A 300 580
205/55R16 94V XL 6.5J 632 400/A/A RP 340 670
205/60R16 92H 6J 652 400/A/A 300 630
205/65R16 95H 6J 672 400/A/A 300 690
215/55R16 97W XL 7J 642 400/A/A 340 730
215/60R16 95H 6.5J 664 400/A/A 300 690
215/65R16 98H 6.5J 686 400/A/A 300 750
225/55R16 95V 7J 654 400/A/A 300 690
225/60R16 98H 6.5J 676 400/A/A 300 750
235/60R16 100H 7J 688 400/A/A 300 800



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
17″ 215/55R17 94V 7J 668 400/A/A 300 670
225/55R17 101H XL 7J 680 400/A/A 340 825



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector

Rim Diameter Size LI/SI Measuring
Rim		 Overall
Diameter（mm）		 UTQG REMARK Max. Pressure(kPa) Max. Load(kg）
RWW&
RWL		 165/65R13 77T 4.5J 544 400/A/A RWW 300 412
175/70R13 82T 5J 576 400/A/A RWW 300 475
185/70R14 88H 5.5J 616 400/A/A RWW 300 560
185/70R14 88H 5.5J 616 400/A/A RWL 300 560
195/70R14 91H 6J 630 400/A/A RWW 300 615
195/70R14 91H 6J 630 400/A/A RWL 300 615
195/65R15 91H 6J 635 400/A/A RWW 300 615
195/65R15 91H 6J 635 400/A/A RWL 300 615



RWW=Raised White Wall  RWL=Raised White Letter  RP=Rim Protector



DOWNLOAD
  • Quick Links
  • By Vehicle
  • By Season
  • BY BRAND

Copyright By © QINGDAO DITRIP TYRE CO.,LTD

MK687
MK687
Design with big pattern block outside provides enough rigidity and excellent steer-ability. The fine...
Read More
MK677
MK677
The design with 3D grooves increased the contacting area with ice and snow and improved thegrasp force.The...
Read More
MK657
MK657
The special pattern design with 3D cutter grooves improved the stability of grasp performance on snow...
Read More

Products

Select Gender

1660
Brand
colorhub.me_photos_8O2VX_1920x1080
Vehicle
Select category
MK687
MK687
Design with big pattern block outside provides enough rigidity and excellent steer-ability. The fine...
MK677
MK677
The design with 3D grooves increased the contacting area with ice and snow and improved thegrasp force.The...
MK657
MK657
The special pattern design with 3D cutter grooves improved the stability of grasp performance on snow...
MK627
MK627
The design of shoulder pattern with rectangular shape and integrated couplingstyle enhanced the load...
MK617SUV
MK617 SUV
The wide tire and new 3D saw tooth fine seam pattern design of the crown increase the griparea of the...
MK617
MK617
The wide design and pattern with new 3D sawtooth style fine sipe greatlyof the tread and effectively...
1 2 3 … 22
