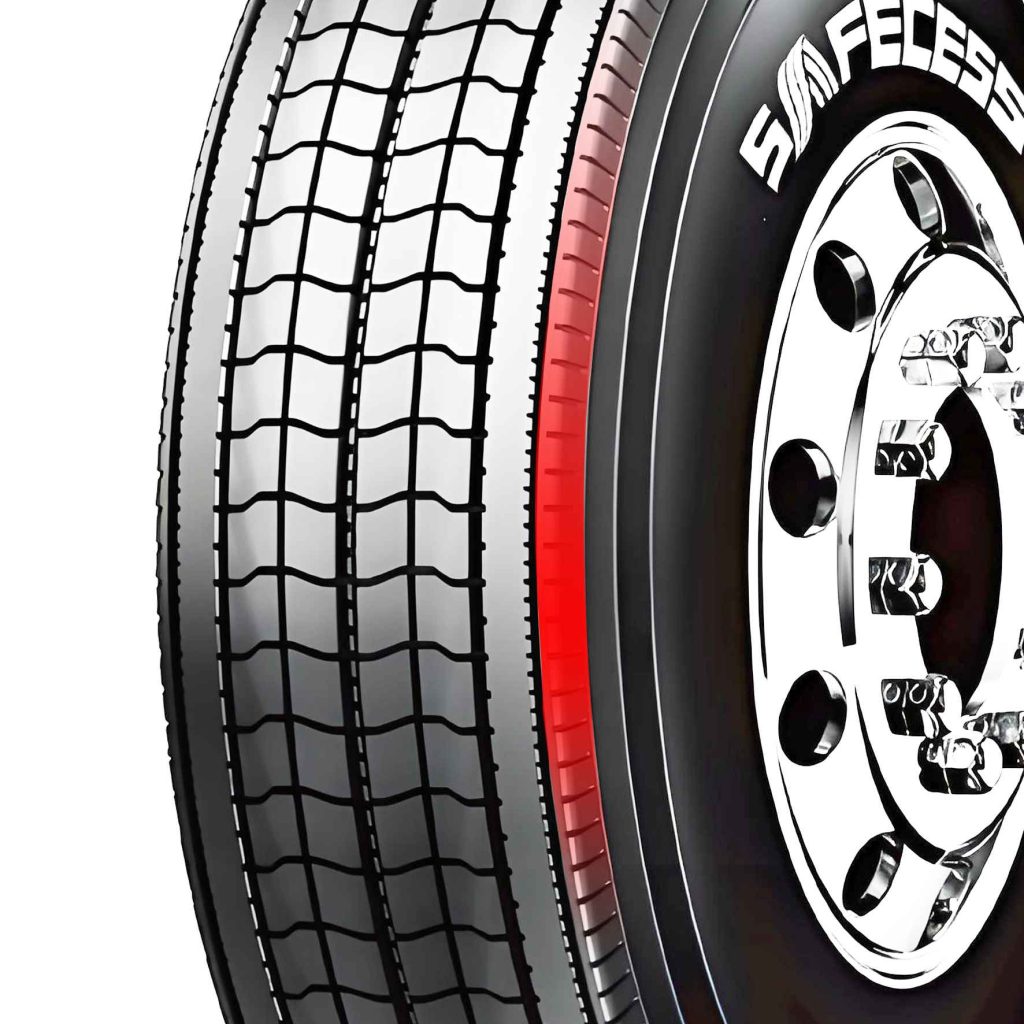

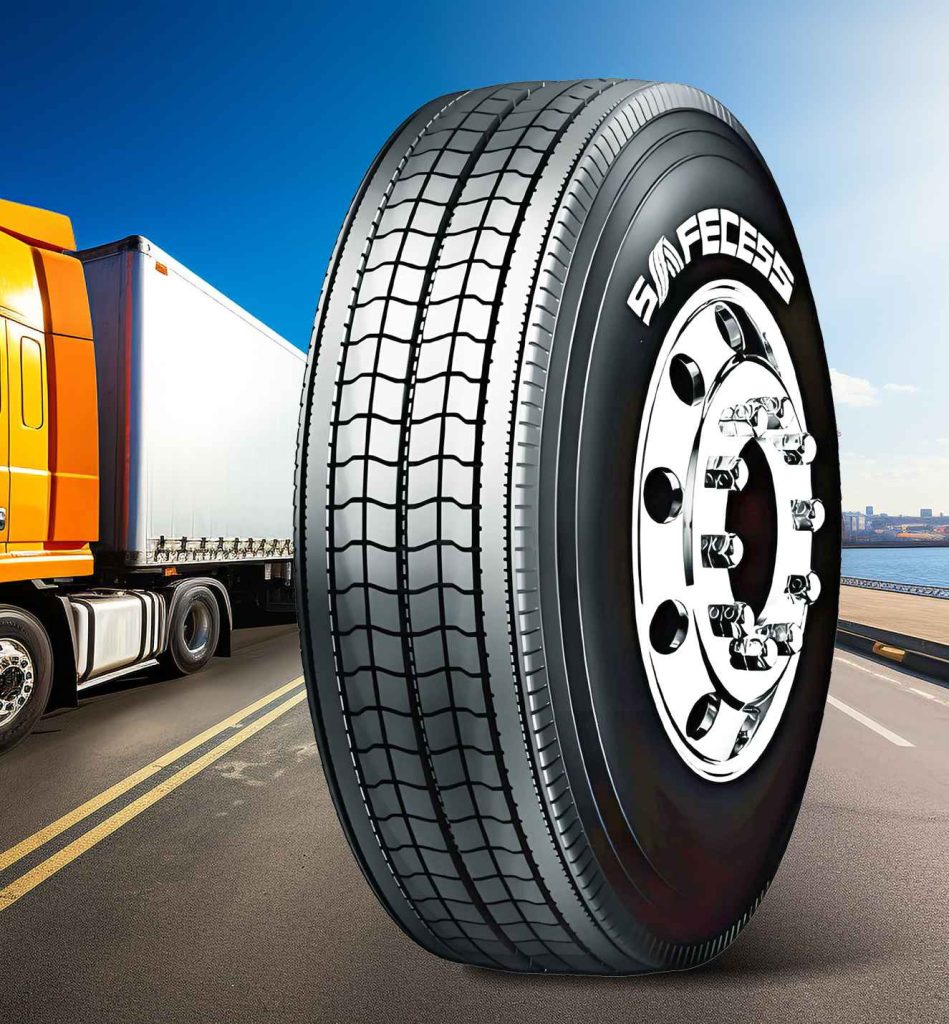

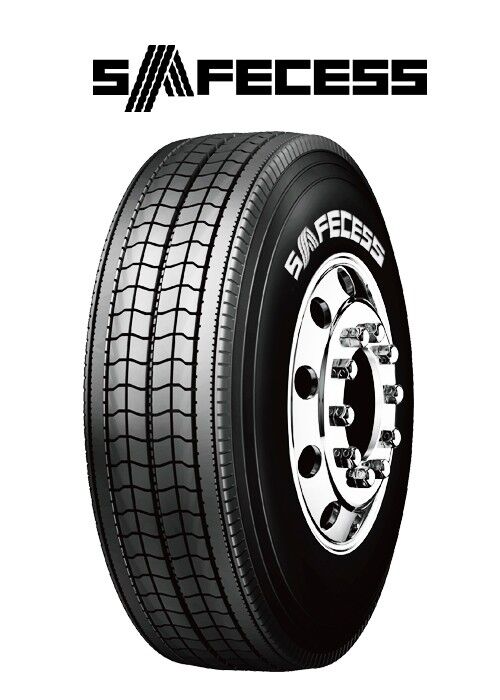

SFC57

Smartway verified for lower rolling resistance and excellent fuel efficiency on highways.

Curved lug design delivers excellent driving and braking force.

Wide footprint and solid shoulder design for im proved stability and even wear.

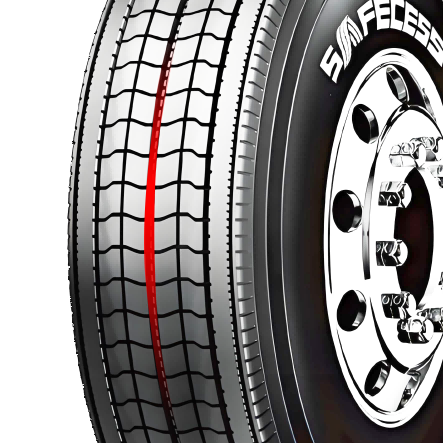

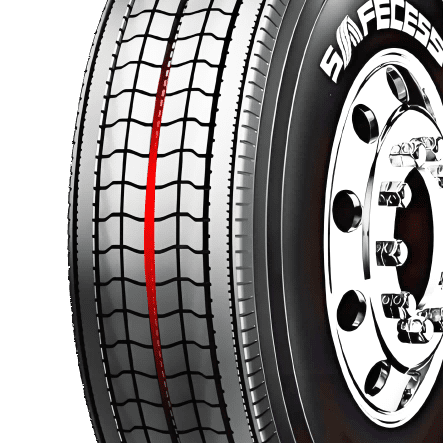

Main groove with stone ejectors protects tyre against stone drilling.

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	11.0
11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	11.0
285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1056	11.0
295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1020	11.0

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
11R22.5	16	146/143	M	8.25	3000	2725	830	830	279	1054	11.0
11R24.5	16	149/146	M	8.25	3250	3000	830	830	279	1104	11.0
285/75R24.5	16	147/144	M	8.25	3075	2800	830	830	283	1056	11.0
295/75R22.5	16	146/143	M	9.00	3000	2725	830	830	298	1020	11.0
