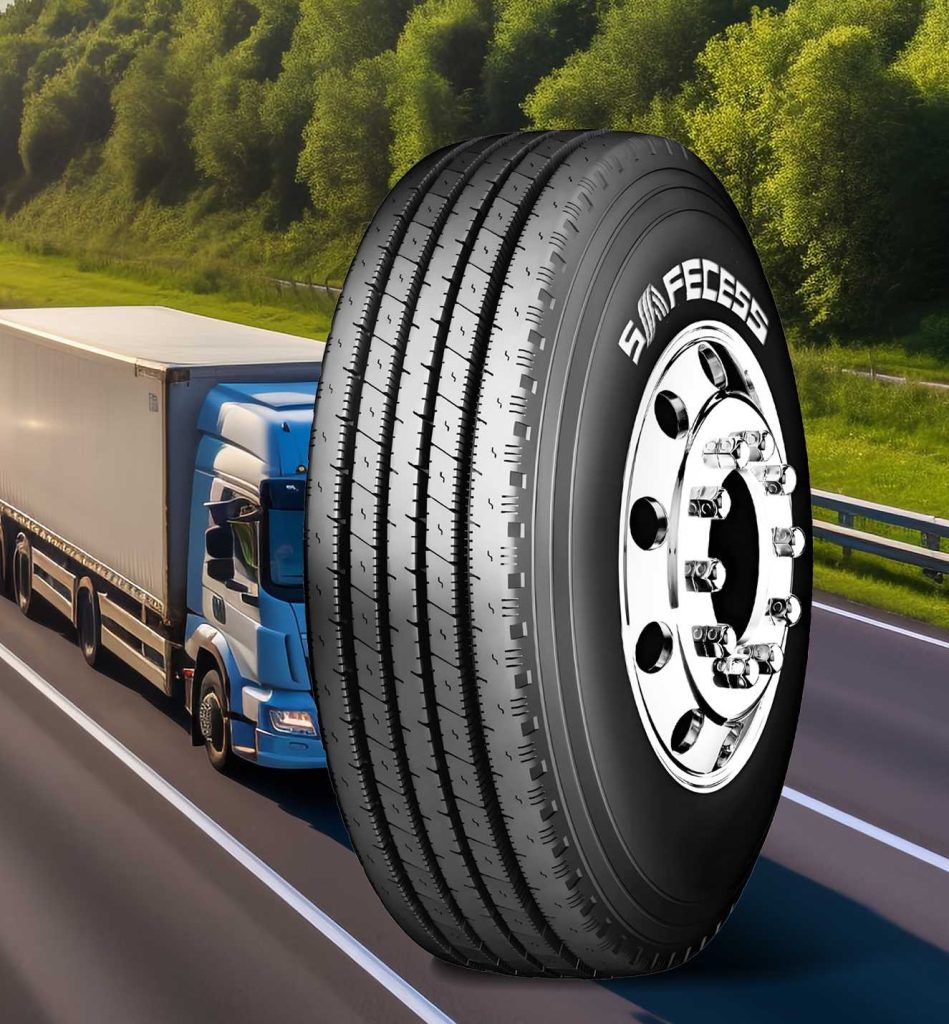

SFC66

Siped ribs and shoulder design provide excellent heat dissipation.

Stone ejectors at the bottom of grooves protect tyre against stone drilling.

Solid shoulder design resists irregular wear and promote increased stability.、

Specially designed compound delivers lower rolling resistance for improved fuel economy.

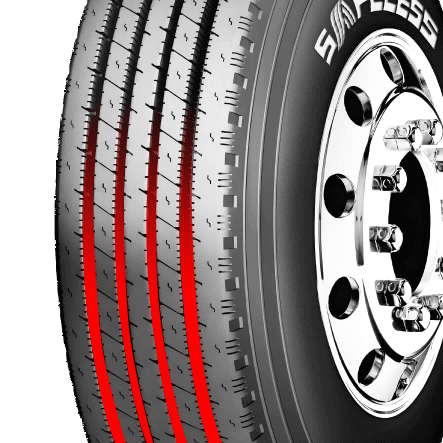

4 wide grooves ensure good drainage,even pressure distribution.

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
295/80R22.5	18	152/149	L	9.00	3550	3250	900	900	298	1044	15.0
11R22.5	16	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
12R22.5	18	152/149	L	9.00	3550	3250	930	930	300	1096	15.0

size

ALL SIZES

Size	PR	Load Index	Speed Rating	Standard Rim	Max. Load(kg）		Pressure(kPa)		Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
Size	PR	Load Index	Speed Rating	Standard Rim	Single	Dual	Single	Dual	Section Width(mm)	Overall Diameter(mm)	Tread Depth(mm)
295/80R22.5	18	152/149	L	9.00	3550	3250	900	900	298	1044	15.0
11R22.5	16	146/143	L	8.25	3000	2725	830	830	279	1054	15.0
12R22.5	18	152/149	L	9.00	3550	3250	930	930	300	1096	15.0
