Aggressive multi-lug tread design improves off-road traction.

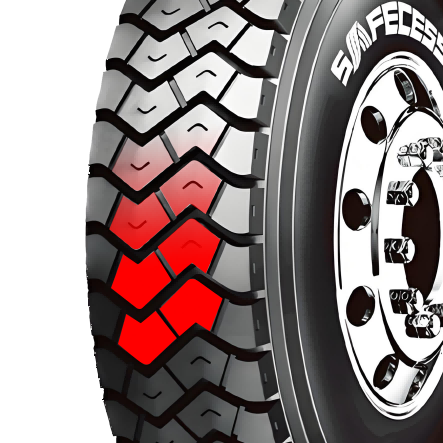

Open shoulder and tread grooves promote self-cleaning and improve traction.

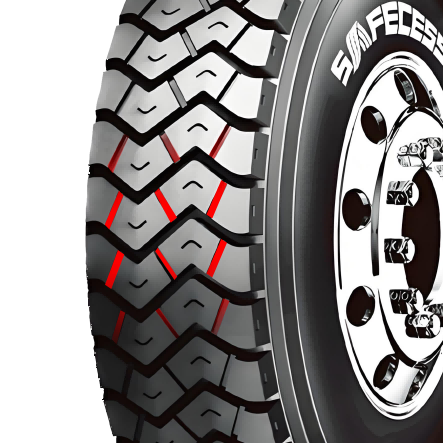

Integrated tie bars between blocks reduce uneven wear and promote stability.
Size | PR | Load Index |
Speed Rating |
Standard Rim |
Max. Load(kg) | Pressure(kPa) | Section Width(mm) | Overall Diameter(mm) | Tread Depth(mm) | ||
Single | Dual | Single | Dual | ||||||||
7.50R16LT | 14 | 122/118 | L | 6.00 | 1500 | 1320 | 770 | 770 | 215 | 815 | 15.0 |
8.25R16LT | 16 | 128/124 | L | 6.50 | 1800 | 1600 | 770 | 770 | 235 | 865 | 16.0 |
10.00R20 | 18 | 149/146 | K | 7.50 | 3250 | 3000 | 930 | 930 | 278 | 1065 | 16.5 |
11.00R20 | 18 | 152/149 | K | 8.00 | 3550 | 3250 | 930 | 930 | 293 | 1096 | 20.0 |
12.00R20 | 20 | 156/153 | K | 8.50 | 4000 | 3650 | 900 | 900 | 315 | 1136 | 20.0 |
Size | PR | Load Index |
Speed Rating |
Standard Rim |
Max. Load(kg) | Pressure(kPa) | Section Width(mm) | Overall Diameter(mm) | Tread Depth(mm) | ||
Single | Dual | Single | Dual | ||||||||
7.50R16LT | 14 | 122/118 | L | 6.00 | 1500 | 1320 | 770 | 770 | 215 | 815 | 15.0 |
8.25R16LT | 16 | 128/124 | L | 6.50 | 1800 | 1600 | 770 | 770 | 235 | 865 | 16.0 |
10.00R20 | 18 | 149/146 | K | 7.50 | 3250 | 3000 | 930 | 930 | 278 | 1065 | 16.5 |
11.00R20 | 18 | 152/149 | K | 8.00 | 3550 | 3250 | 930 | 930 | 293 | 1096 | 20.0 |
12.00R20 | 20 | 156/153 | K | 8.50 | 4000 | 3650 | 900 | 900 | 315 | 1136 | 20.0 |
